Product Details
＋

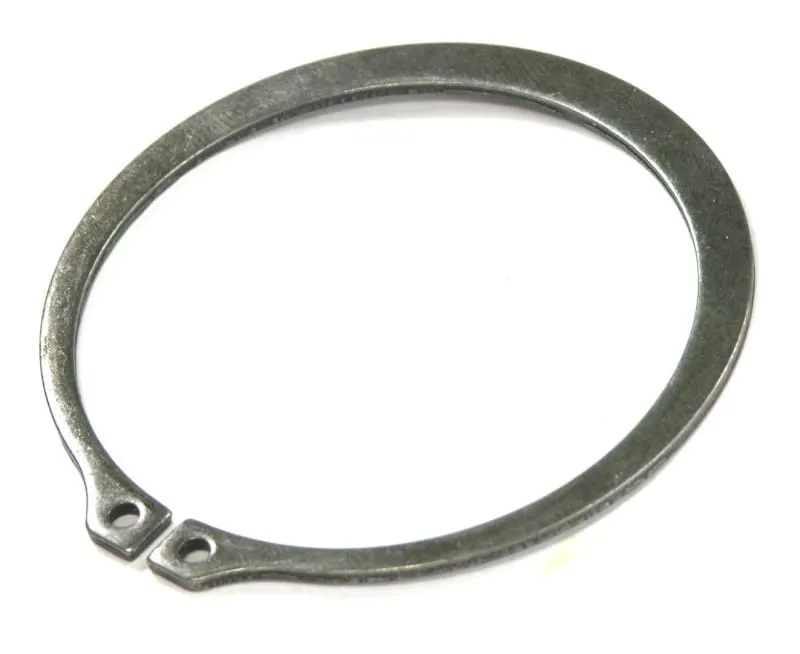

5100-156 External Retaining Ring
| Ring Specs | |||
|
|
|||
| (D) Free Diameter: | 1.446 | 0.013 / -0.020 | in. |
| (t) Thickness: | 0.062 | 0.003 / -0.003 | in. |
| (b) Radial Wall: | |||
| Groove Specs: | |||
|
|
|||
| (B) Application Diameter: | 1.562 | in. | |
| (G) Groove Diameter: | 1.468 | 0.005 / -0.005 | in. |
| (W) Groove Width: | 0.068 | 0.004 / -0.000 | in. |
| Groove Depth: | 0.047 | in. | |
| Other Specs | |||
|
|
|||
| Approximate Weight per 1000: | 12.400 | lbs. | |
| (C) Clearance Diameter Expanded Over Shaft: | 2.100 | in. | |
| (C1) Clearance Diameter & Guaging Diameter Seated in Groove: | 2.010 | in. | |
|
(Pg) Theoretical Thrust Load Capacity - Groove Yield: Notes: Yield Strength of Groove Material (Ys): 45,000 psi. Calculated using a safety factor (K) of 2 Equation: Pg = [ Cf * B * d * Ys * pi ] / K = [ (1) * (1.562 in.) * (0.047 in.) * (45,000 psi) * 3.14 ] / 2 |
5,186 | lbs. | |
|
(Pr) Theoretical Thrust Load Capacity - Ring Shear: Notes: Ring Material1: Carbon Spring Steel (SAE 1060-1090). Shear Strength of Ring Material (Ss): 150,000 psi. Calculated using a safety factor (K) of 4 Equation: Pr = [ Cf * B * t * Ss * pi ] / K = [ (1) * (1.562 in.) * (0.062 in.) * (150,000 psi) * 3.14 ] / 4 1Calculation assumes Carbon Steel for ring material, but Carbon Steel not necessarily available for all parts or sizes. |
11,403 | lbs. | |
|
Industry Equivalent Part Number(s): 5100-156 |
|||
